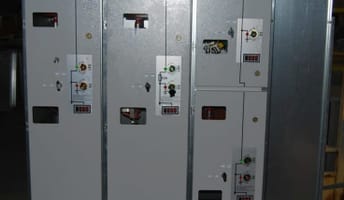

Switchgear system USN
UVN is an air insulated 10kV semi-metalclad type switchgear system, designed to be used in public and industrial networks with rated busbar current up to 1000A. The system consists of different complement prefabricated standardised cubicles. UVN-T-10 type cubicles with load break switches and USN-10/100 type cubicles with withdrawable vacuum circuit breakers can be delivered as completed switchgear or as single distribution equipment.
The modular design makes it easily extendable at site
Small dimensions
Corrosion-proof 2 mm thickness zinc coated sheet steel housing
Operation of switching devices with front door closed
Distribution cubicles provide the highest possible personnel safety and service reliability
